300/500V Class C Flame-Retardant Double-Shield Computer Control Cable
Core Structure: Solid twisted copper pairs + low-capacitance XLPE insulation + individual copper pair shield + copper tape overall shield + ZC flame-retardant PVC sheath
Core Performance: Superior low-frequency anti-EMI, anti-crosstalk between signal loops, Class C flame retardant, long-distance low-attenuation signal transmission
Application Scenarios: DCS/PLC industrial automation, multi-channel sensor wiring, high-noise chemical/power plant workshops
Environmental Resistance: Resists indoor moisture, dust and light oil for long-term fixed laying
Compliance: Fully meets GB/T 9330 & IEC international standards for flame-retardant double-shielded computer control cables
Product Introduction

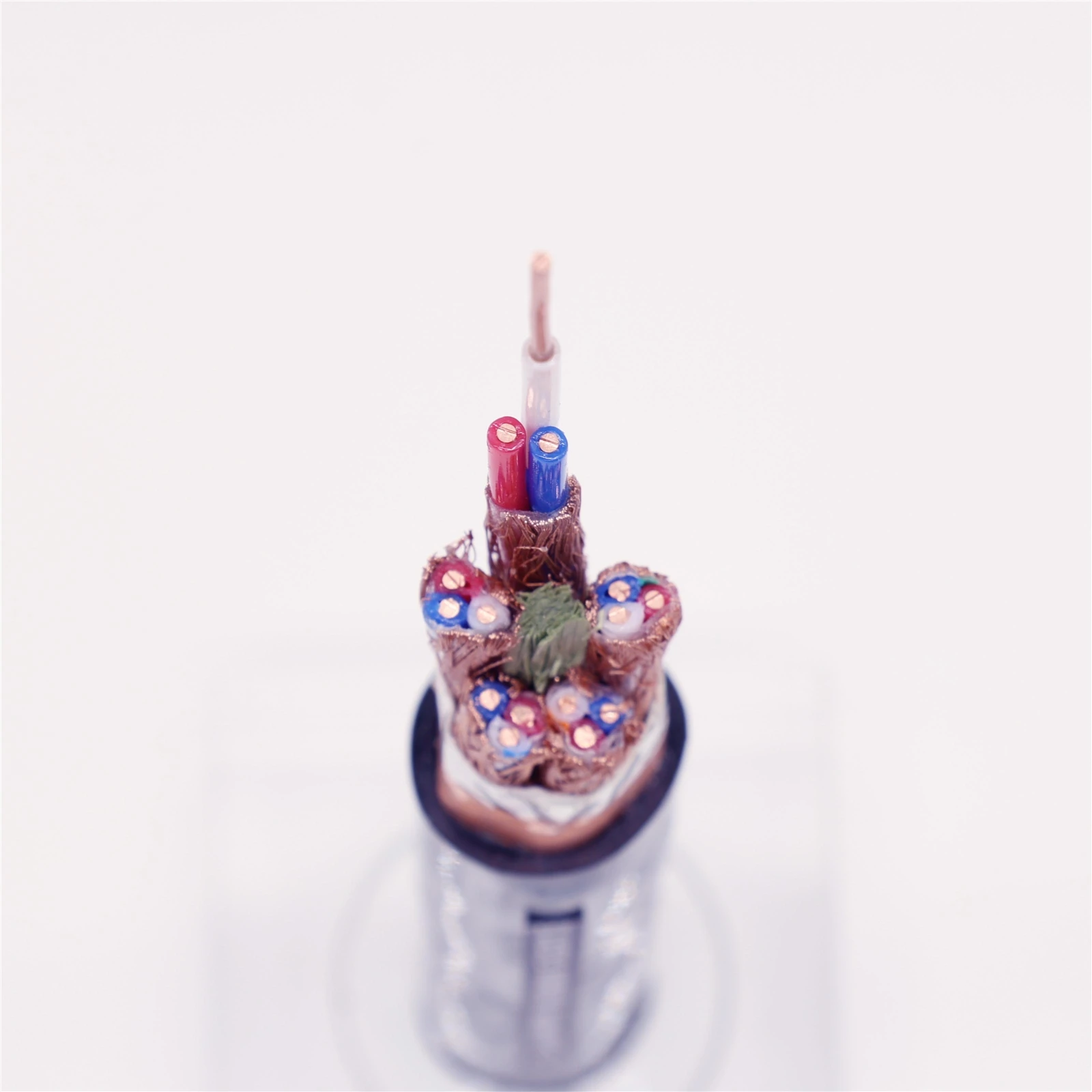

This multi-group double-shielded flame-retardant computer cable (ZC-DJYPVP2 5×3×1.5) is dedicated to precision weak signal transmission for industrial DCS and PLC automation systems, rated at 300/500V. It adopts 5 groups of 3-core twisted differential pairs, low-capacitance XLPE insulation, independent copper braided shielding for each twisted pair, and copper tape wrapped overall total shielding (VP2 structure), matched with Class C flame-retardant PVC outer sheath. The composite double shielding structure provides outstanding suppression of both internal signal crosstalk and external low-frequency electromagnetic interference, making it ideal for factories filled with inverters, large motors and high-power electrical equipment.
product key technologies
1.Solid copper twisted signal pairs (5 groups, 3 twisted pairs per group, single core cross-section 1.5mm²)
2.Low-capacitance XLPE insulation for individual conductors
3.Copper wire braided separate shielding layer for every twisted pair
4.Isolation wrapping tape for each group unit
5.Continuous copper tape wrapped overall total shielding layer (VP2 type)
6.Buffer bedding tape
7.ZC Class C flame-retardant PVC outer protective sheath
- Solid Copper Twisted Pairs：Differential twisted pair layout offsets internal electromagnetic coupling to eliminate crosstalk between multi-channel monitoring signals; high-purity solid copper ensures stable low-resistance transmission of analog/digital sensor signals without signal loss.
- XLPE Core Insulation：Cross-linked polyethylene with ultra-low dielectric constant and stable capacitance avoids waveform distortion and signal attenuation during long-distance transmission; it supports continuous 90°C operation with excellent thermal aging resistance compared to conventional PVC insulation.
- Individual Copper Braided Pair Shield：Every signal pair is wrapped with an independent copper mesh shield to completely isolate interference between different signal loops, guaranteeing measurement accuracy for parallel multi-channel circuits.
- Group Isolation Wrapping Tape：Separates different signal groups to reduce cross-coupling interference between independent control loops inside the cable.
- Copper Tape Wrapped Overall Shield (VP2)：Continuous copper tape wrapping forms a seamless outer shielding barrier, delivering far better shielding efficiency against low-frequency industrial electromagnetic noise (from motors, transformers and inverters) than copper braided total shield types.
- ZC Flame-Retardant PVC Outer Sheath：Class C flame-retardant PVC compound restricts flame spread in case of short-circuit ignition, while resisting indoor moisture, dust and light oil splashes to fully protect the internal shielding and core structure.
Key Advantages
- Composite Double Anti-Interference Design: Separate pair braided shield + seamless copper tape total shield, outstanding shielding performance for low-frequency industrial EMI noise.
- Twisted Pair Anti-Crosstalk Layout: Differential twisting eliminates mutual signal interference for parallel multi-channel sensor wiring.
- Low-Capacitance XLPE Insulation: Ensures high-fidelity signal transmission over long distances without phase shift or attenuation.
- Class C Flame-Retardant Safety: Complies with industrial fire protection standards to lower fire hazards in production workshops.
- Uniform Shield Coverage: Copper tape total shield maintains consistent shielding impedance, perfectly matched with industrial DCS/PLC equipment input modules.
- Standardized Production: Fully manufactured to GB/T 9330 and corresponding IEC international standards for flame-retardant computer control cables.
What Are the Product Application Scenarios?
- DCS distributed control systems for thermal power plants, chemical plants and metallurgical workshops
- PLC automation signal wiring in manufacturing plants with dense inverters and large motors
- Connection cables for temperature, pressure, liquid level and flow transmitters
- Precision testing instrument weak signal transmission circuits
- Flame-required chemical and petrochemical workshop automatic monitoring loops
- Water treatment and environmental monitoring multi-channel control systems
Why Choose Shaanxi Jinshenghong Cable
Each batch undergoes full testing of shielding attenuation, flame retardancy, insulation capacitance and characteristic impedance before shipment to verify anti-interference and fire safety performance.
Adopts 100% high-purity oxygen-free copper and imported low-capacitance XLPE raw materials, without recycled inferior fillers.
Customizable options: ZA/ZB higher flame retardant grades, WDZ low-smoke zero-halogen LSZH version, variable group counts and cross-sections.
Sufficient inventory and stable global logistics support fast delivery for automation engineering contractors and equipment manufacturers worldwide.
Professional technical team provides targeted anti-interference wiring schemes for high-electromagnetic-noise industrial production lines.
Thoughtful service - worry free after-sales service
Global logistics
Provide global express and sea freight services, door-to-door, worry free and convenient.
Explanation: Our professional engineering team provides selection and technical support to answer your questions and clarify any doubts.
Provide comprehensive quality assurance and after-sales policies to ensure worry free procurement for you.
FAQ
Q1: What does ZC-DJYPVP2 stand for?
A: ZC = Class C flame retardant; DJ = computer control cable; YJ = XLPE insulation; P = individual copper braided shield per twisted pair; VP2 = continuous copper tape wrapped overall total shield.
Q2: What is the core difference between VP2 copper tape total shield and ordinary VP copper braided total shield?
A: Copper tape wrapped VP2 structure has 100% seamless coverage, which greatly improves shielding efficiency against low-frequency electromagnetic interference from motors and transformers; copper braided VP shield performs better for high-frequency noise but has gaps in coverage.
Q3: Can this cable only be used for indoor fixed laying?
A: The standard PVC sheath is designed for indoor fixed laying only; customized UV-resistant outer sheath is required for open-air outdoor installation.
Q4: What is the rated voltage of this computer signal cable?
A: Rated voltage 300/500V, exclusively for low-voltage weak signal control circuits, not suitable for heavy-load main power transmission.
Q5: Do you supply low smoke zero halogen versions for public infrastructure projects?
A: Yes, we produce complete WDZ-A/B/C series LSZH double-shield computer cables for subway, hospital and high-rise building projects.
Q6: Why choose DJYPVP2 instead of common RVVP shielded cables for industrial sensors?
A: RVVP uses PVC insulation without twisted pair grouping, causing severe signal crosstalk in multi-channel parallel wiring; DJYPVP2's twisted pair + double shielding structure ensures stable precision analog signal transmission for industrial monitoring systems.
