Nm-B Electrical Cable

Type: UL719 Romex NM-B 600V 12-2 Building Wire Romex wire
Rated Temperature: 70℃, 90℃
Rated Voltage: 600V
Standard: UL HD 21.3 S3
Conductor: Tinned Copper, Copper
Core Number: Single
Color: White, Blue, Red, Black, Brown, Yellow, green, transparent, Yellow-green
O.D. Tolerance: ±0.1mm

Send Inquiry

Products Description

NM-B Wire 63 Gauge Yellow 1000 ft 12 2 Nonmetallic Sheathed 14 2 Electrical 50 ft Building

Applications
Type NM-B (nonmetallic-sheathed cable) may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the 2011 National Electrical Code.

NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads.
NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations.
Voltage rating for NM-B cable is 600 volts.

Standards
Type NM-B cable complies with:

• ASTM B-3 and B-8
• UL Standard 83
• UL Standard 719
• Federal Specification A-A-59544
• National Electrical Code, NFPA 70. 2011 Edition
• RoHS/ REACH

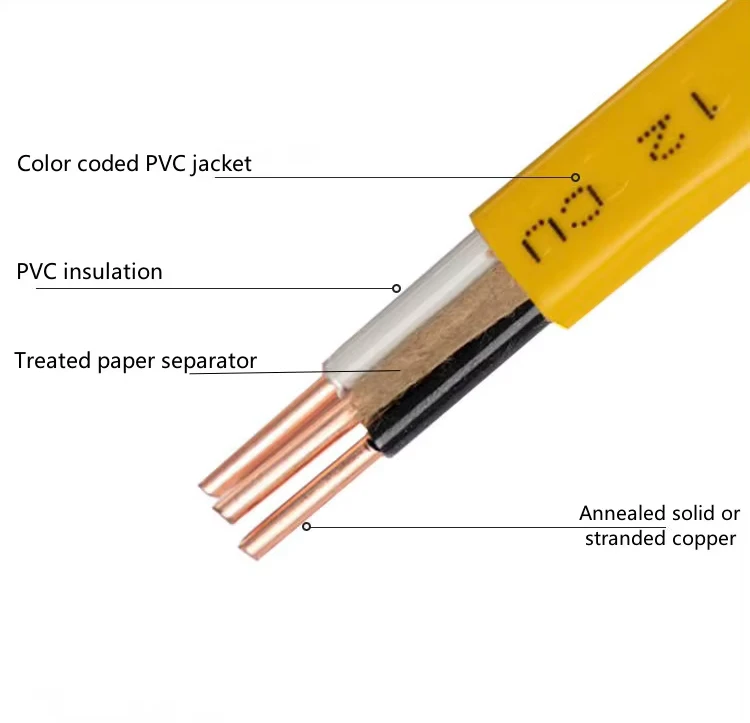

Specifications
Nonmetallic-Sheathed Cable. 600 Volt.

Copper Conductors. Color-Coded Jacket.
Four Conductor Available With Two Neutrals.
