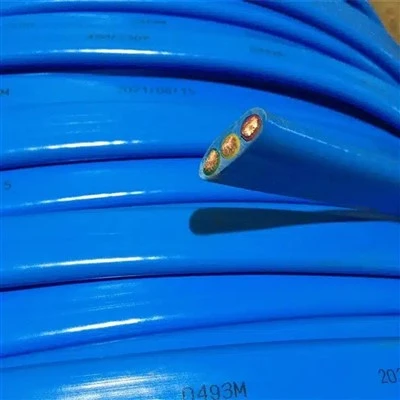

Submersible Pump Cable
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: Outer Sheath CSP (Chlorosulfonated Polyethylene Rubber)
Rated voltage: 300/500V, 450/750V
Voltage endurance: 2500V
Insulation resistance: The insulation resistance at 20 ℃ shall not be less than 100M Ω/km
Conductor resistance: ≤ 1.91 Ω/km, ≤ 0.554 Ω/km
Products Description
JSH is a leading and professional supplier of Submersible pump cables in China. Our company adopts advanced production processes and automated equipment, high-purity copper core conductors, professional services, and customized solutions to deliver a series of high-quality products. With years of industry experience, we ensure that every cable meets international standards and exceeds customer expectations, providing reliable power transmission for submersible pump systems worldwide.
Products Description
comparison of product parameters
| Parameter | Description |
|---|---|
| Conductor Material | Stranded soft copper wires (complying with IEC 60228 Class 5 conductors) |
| Insulation Material | EPR (Ethylene Propylene Rubber) or rubber, withstands 2500V, insulation resistance ≥100MΩ/km (20℃) |
| Sheath Material | CSP (Chlorosulfonated Polyethylene Rubber) or oil-resistant rubber, waterproof, abrasion-resistant, corrosion-resistant |
| Rated Voltage | Available in 300/500V, 450/750V, 600/1000V, 3kV, 5kV, etc. |
| Operating Temperature | -50℃ to +105℃ (varies by material) |
| Bending Radius | Minimum bending radius 6-8 times the outer diameter of the cable |
| Waterproof Rating | IP68 (passed 30-bar waterproof test) |
| Certifications | UL, CE, IEC 60228, EN 50525, BS 638, etc. |
Product Features
Exceptional Waterproof Performance: Equipped with CSP rubber sheath and EPR insulation, passed 30-bar waterproof test, ensuring stable operation when submerged in water for long periods.
High Voltage & Corrosion Resistance: Suitable for high-voltage environments (600V to 5kV), oil-resistant, acid/alkali-resistant, ideal for offshore drilling rigs, mines, and other corrosive scenarios.
High Flexibility: Stranded soft copper conductor design with small bending radius, easy to install and route in complex environmentsphilatron.com.
Wide Temperature Range: Operates from -50℃ to +105℃, adapting to extreme climatic conditions.
Low-Resistance Transmission: High-purity copper core reduces power loss and improves energy efficiencyphilatron.com.
Products Description
|
No. of cores × cross-sectional area |
Nominal Diametermm |
WeightKg/Km |
|
3×1.5 |
12.4×5.7 |
100 |
|
3×2.5 |
14.2×6.7 |
170 |
|
3×4 |
16.6×7.9 |
240 |
|
3×6 |
18.4×8.5 |
300 |
|
3×10 |
21.4×9.5 |
450 |
|
3×16 |
25.9×11.5 |
680 |
|
3×25 |
30.7×13.1 |
950 |
|
3×35 |
35.2×15.0 |
1300 |
|
3×50 |
40.9×17.3 |
1800 |
|
3×70 |
47.9×19.8 |
2450 |
|
3×95 |
53.6×22.6 |
3150 |
Product Details
More details
Choose the plan that suits you best.
Conductor Structure:
Stranded fine copper wires (e.g., 35mm² core consists of 1107 strands of 0.20mm copper wires), enhancing flexibility and conductivity
Insulation Layer:
EPR insulation with uniform thickness, passed 2500V withstand voltage test, ensuring electrical safety.
Sheath Process:
CSP rubber sheath use seamless extrusion technology, smooth surface, abrasion-resistant, and extremely low water absorption.
Color Coding:
Available in various insulation colors (e.g., black, brown, yellow-green grounding), facilitating easy identification and installation.
About the company
Custom Solutions: Offer special specifications (e.g., high-temperature resistance, oil resistance), color coding, and length customization based on customer requirements.
Technical Support: Professional engineer team provides installation guidance, troubleshooting, and system optimization advice.
Fast Delivery: Own factory ensures production capacity, regular orders shipped within 7-15 working days, urgent orders can be expedited.
After-Sales Service: Provide 3-year warranty and lifetime technical consultation to ensure customer peace of mind.
FAQ
Q: What is Foreign Trade-Express?
A: Foreign Trade Express is a one-stop intelligent foreign trade network marketing SaaS system platform.
Q: 1.You are manufacturer or trader ?
A: Jinshenghong Cable is a professional cable and wire manufacturer with over 20 years of experience. Our factory is located in Shaanxi, China.
Q: 2.How can I get the quotation of the products ?
A: Pls send your inquiry to us,our sales manager will offer you within 12 hours.
Q: 3.What does your company do regarding quality control?
A: 1) All raw materials we selected are the highest quality.
2) Professional and skillful workers care every details in handling the producing.
3) Quality control department is specially responsible for quality checking in each process.
Q: 4.Do you provide OEM project service?
A: Yes,OEM & ODM order is warmly welcomed.Our engineers will give you the professional suggestions.
Q: 5.What is your payment term ?
A: Our payment term is usually T/T 30% in advanced, the balance before shipping or L/C at sight.
Contact Us
