Product Introduction
Product Introduction

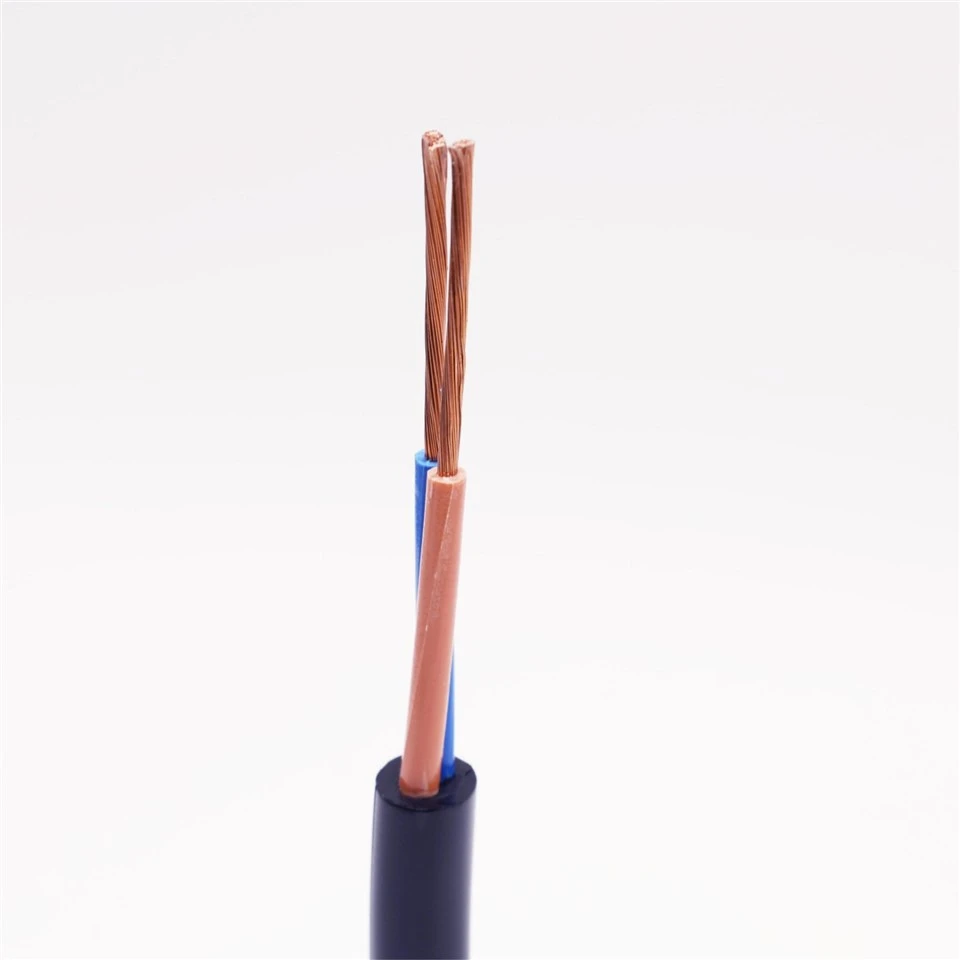

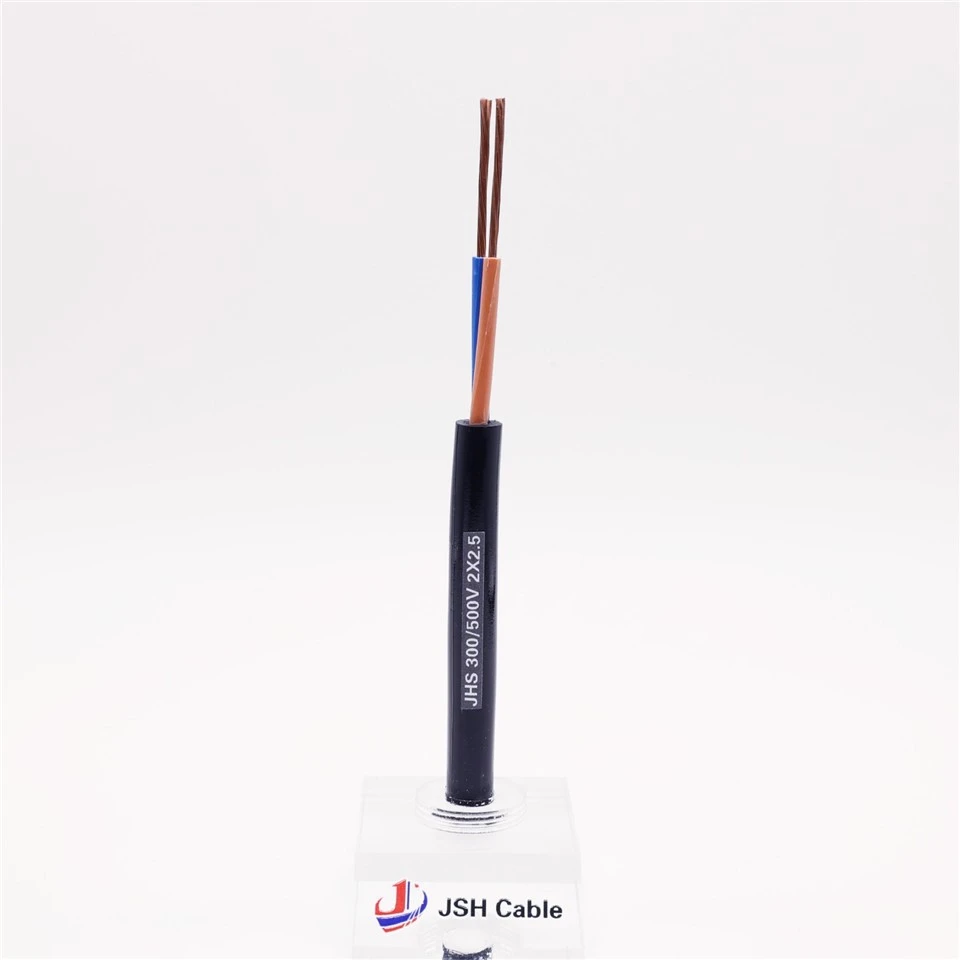

This double-core submersible pump cable (JHS 2×2.5mm²) is specially engineered for underwater submersible pumps, underwater motors and underwater equipment power supply. It features flexible stranded copper conductors, waterproof rubber insulation and integrated waterproof rubber outer sheath, rated at 300/500V AC, maintaining stable electrical performance under long-term full water immersion.
product key technologies
- Stranded flexible copper conductors
- Waterproof rubber core insulation
- Filler & binding wrapping
- Integrated waterproof rubber outer sheath
- Flexible Stranded Copper Conductors：Multi-strand soft copper offers high conductivity and excellent bending flexibility, adapting to frequent movement of submersible pumps underwater without wire breakage.
- Waterproof Rubber Core Insulation：Special rubber insulation blocks water penetration, provides reliable electrical isolation to prevent short circuits under long-term soaking.
- Fillers & Wrapping Tape：Seals internal gaps to stop water capillary infiltration, keeps cable round and improves structural stability under water pressure.
- Integrated Rubber Outer Sheath：Thickened waterproof rubber outer layer resists water pressure, hydrolysis, mold and aquatic corrosion, fully isolating the inner core from water and mud.
Key Advantages
- Superior Long-Term Waterproof Performance: Integrated rubber sealing structure prevents water seepage even under continuous full immersion in fresh water or shallow seawater.
- High Flexibility & Tear Resistance: Soft rubber + multi-strand copper withstand repeated bending and twisting during pump lifting and installation.
- Anti-Mold & Anti-Aging: Rubber compound resists microbial erosion in water, avoids cracking and hardening after years of underwater use.
- Wide Temperature Adaptability: Stable operation from -20°C to +70°C, suitable for underground wells, ponds and sewage pools.
- Good Abrasion Resistance: Outer sheath resists friction with sand, rock and well walls during pump lifting.
- Standard Compliance: Produced per national standards for submersible pump cables, matching all common domestic and imported submersible pump models.
What Are the Product Application Scenarios?
- Deep well submersible water pump power supply wiring
- Underwater sewage pump, fountain pump and aquarium equipment
- Agricultural irrigation submersible pump power circuits
- Underwater monitoring sensors and underwater motor connection cables
- Municipal sewage tank, pond water circulation pump wiring
Why Choose Shaanxi Jinshenghong Cable
- Full waterproof immersion aging test for every batch before delivery to verify sealing performance.
- High-purity flexible copper and imported waterproof rubber raw materials without recycled rubber filler.
- Customizable core count, cross-section and length for different pump power ratings.
- Sufficient stock and global logistics support fast order delivery worldwide.
- Professional technical team provides matching wiring solutions for submersible pump projects.
Thoughtful service - worry free after-sales service
Global logistics
Provide global express and sea freight services, door-to-door, worry free and convenient.
Explanation: Our professional engineering team provides selection and technical support to answer your questions and clarify any doubts.
Provide comprehensive quality assurance and after-sales policies to ensure worry free procurement for you.
FAQ
Q1: What does JHS stand for?
A: JHS = Rubber insulated waterproof submersible pump dedicated power cable.
Q2: Can this cable work continuously under full water immersion?
A: Yes, the fully sealed rubber structure can run steadily for years in deep well water, pond water and light sewage.
Q3: Is this cable resistant to sand and rock abrasion during pump lifting?
A: The thickened wear-resistant rubber outer sheath effectively reduces damage from friction with well wall sand and stones.
Q4: Can it be used in seawater?
A: It is suitable for short-term shallow seawater use; special anti-seawater corrosion customized version is recommended for long-term marine applications.
Q5: What is the rated voltage for this submersible cable?
A: Rated voltage 300/500V, fits low-power household and agricultural submersible pumps.
Q6: Does the cable resist mold growth in water?
A: The rubber material contains anti-mold additives to inhibit microbial breeding and insulation deterioration underwater.
