Product Introduction

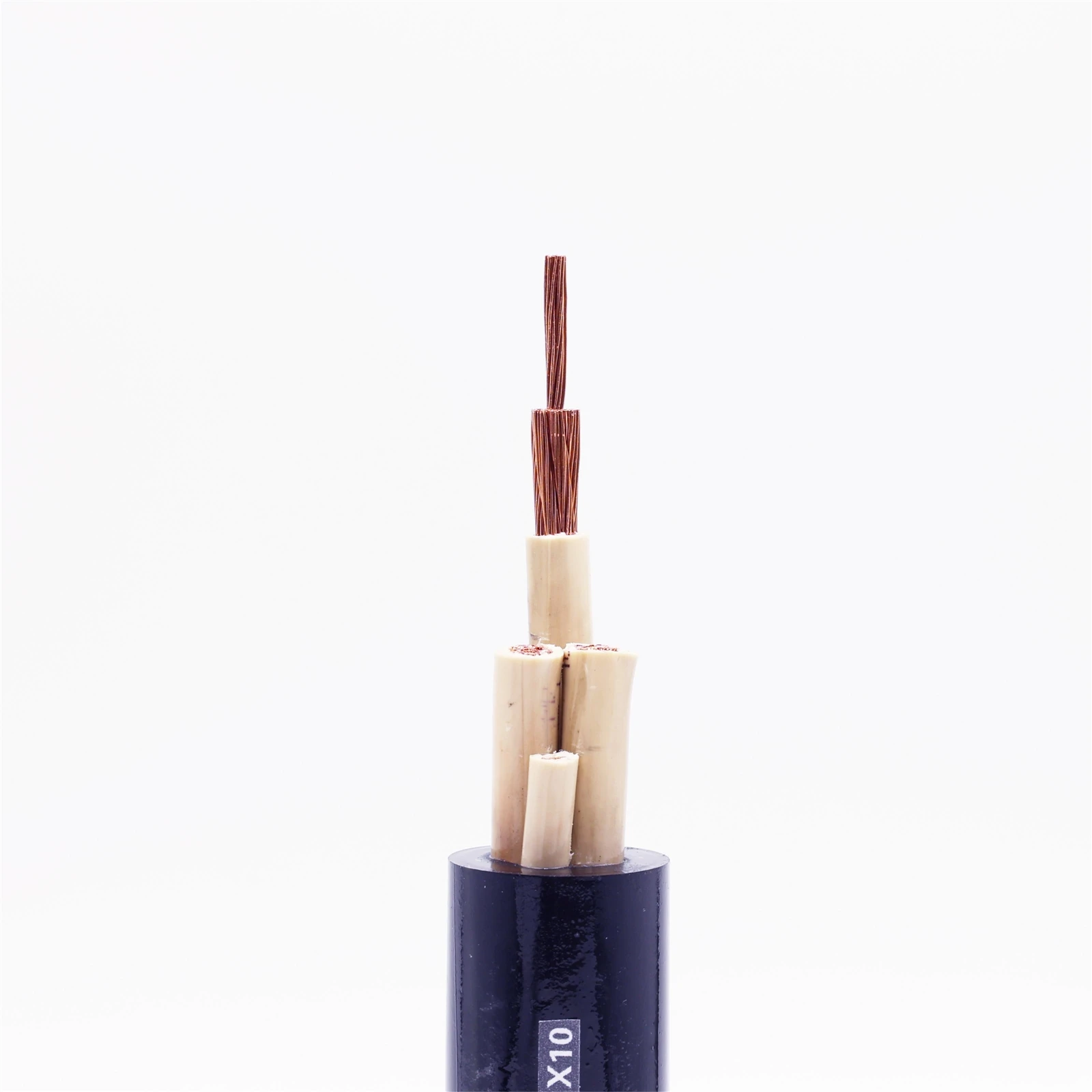

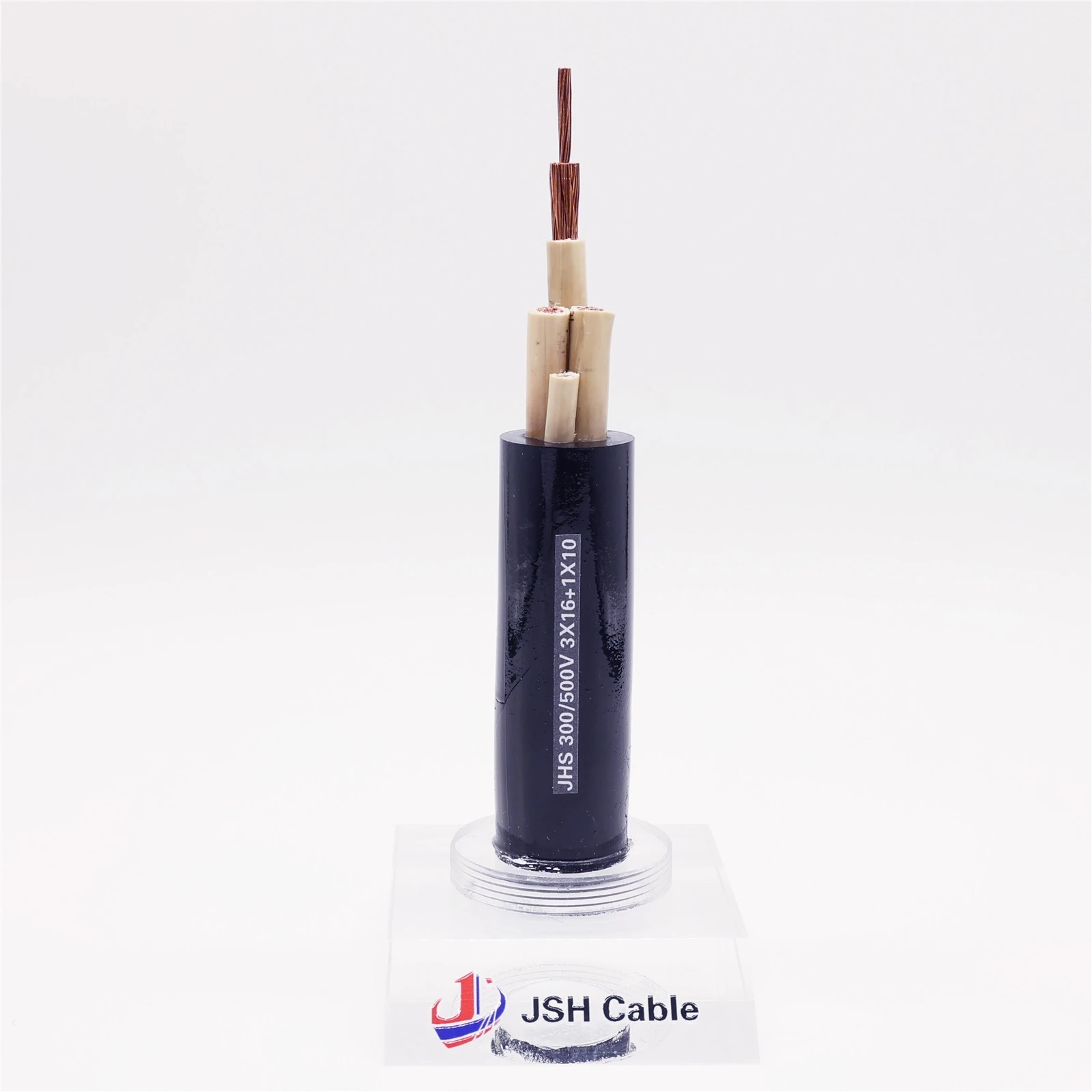

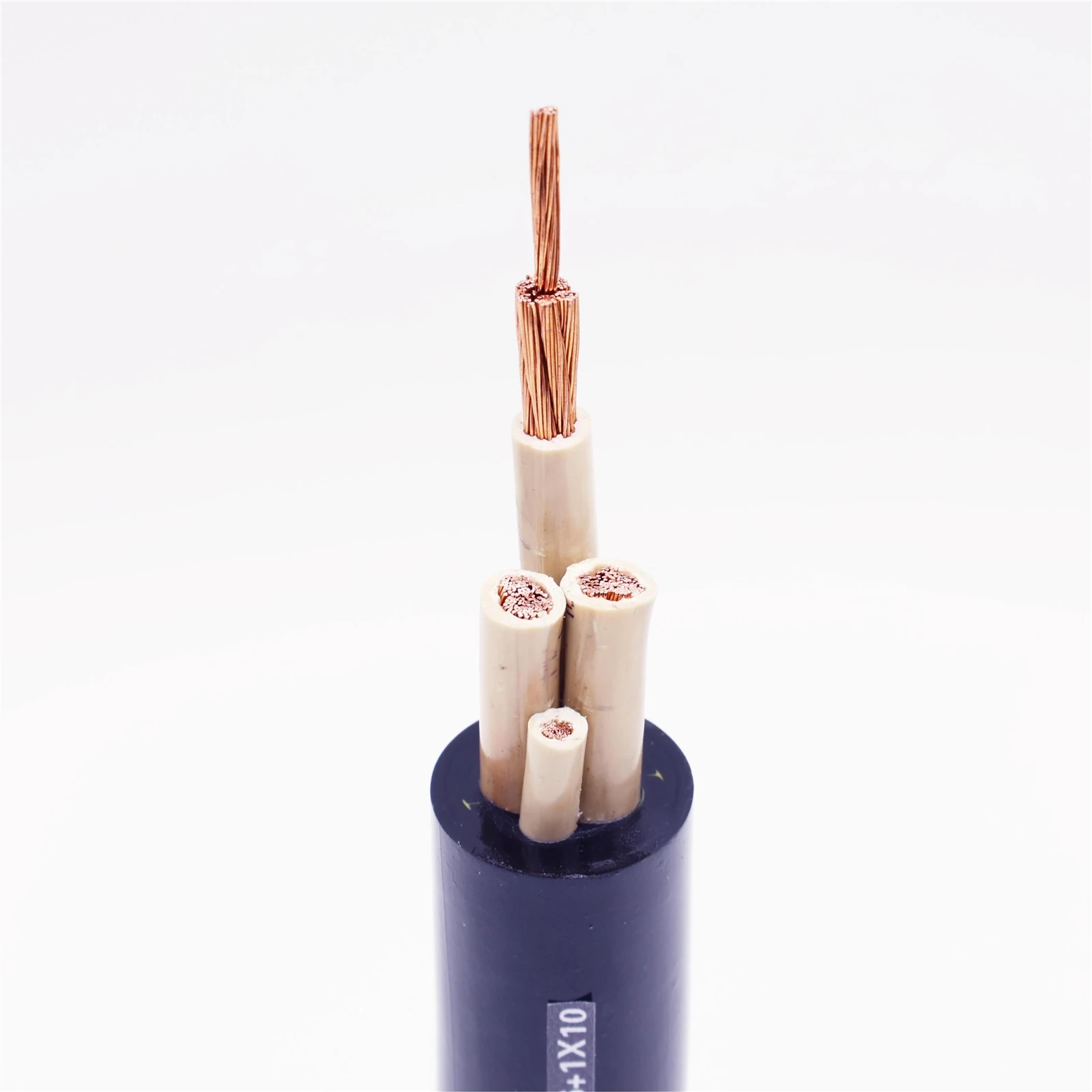

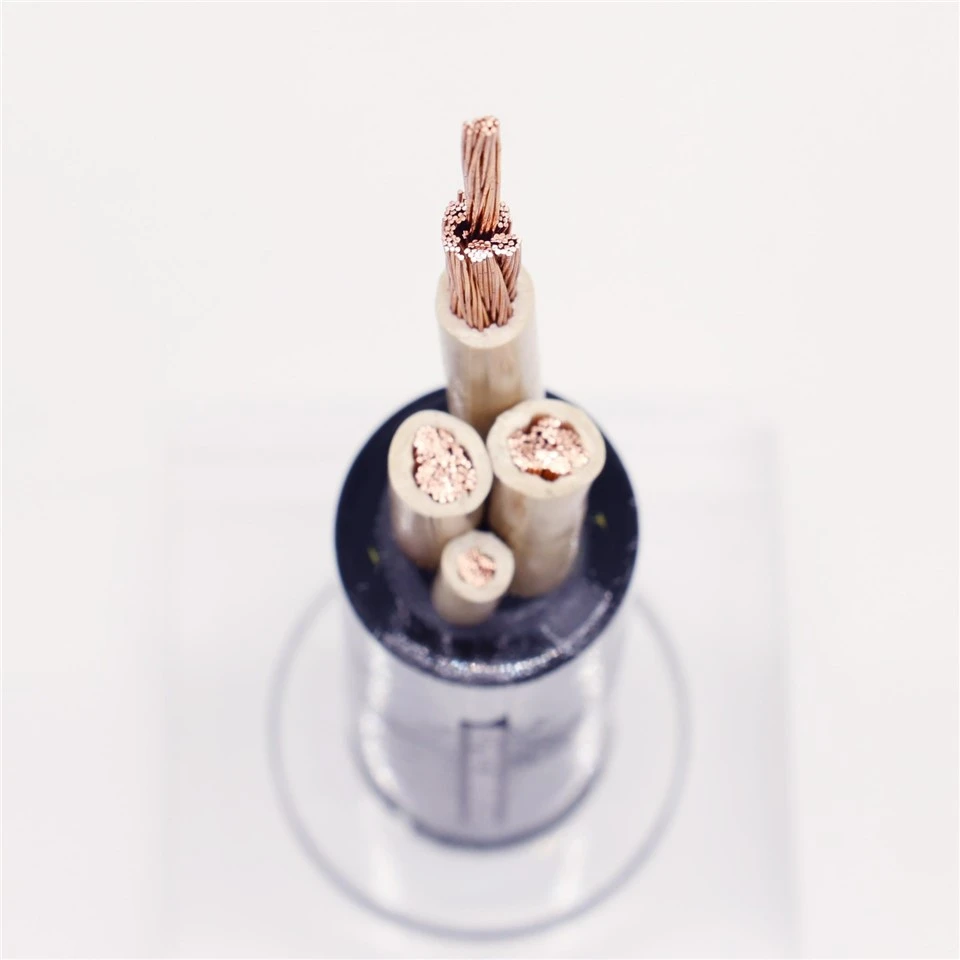

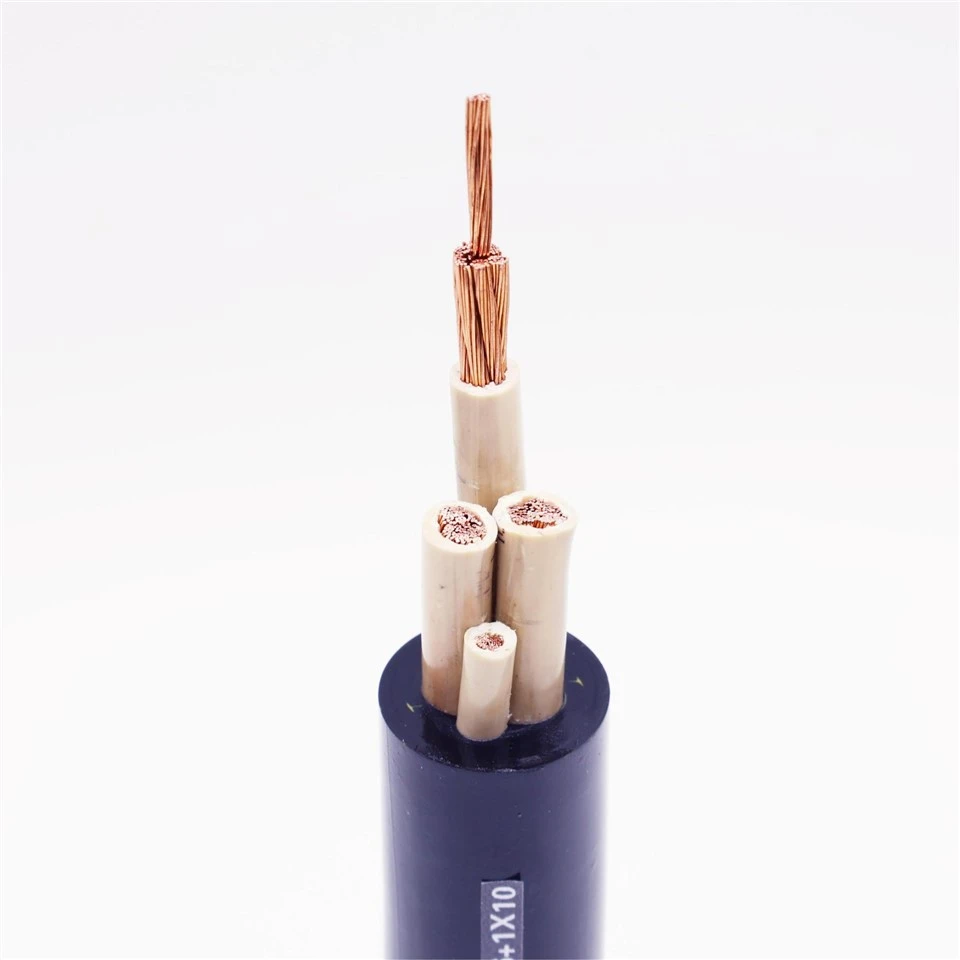

This 4-core submersible pump dedicated cable (JHS 3×16+1×10) is rated 300/500V, designed for large-power deep-well submersible pumps, sewage submersible motors and long-term underwater equipment power supply. It adopts flexible copper conductors, integrated waterproof rubber insulation and outer sheath, featuring excellent water-blocking, anti-mold and anti-abrasion performance to work stably under full water immersion.
product key technologies
- Stranded flexible copper power cores (3×16mm²) + grounding core (1×10mm²)
- Waterproof rubber insulation for each single core
- Sealed water-blocking filler & wrapping tape
- Thickened integrated waterproof rubber outer sheath
- Multi-strand Flexible Copper Conductors:Soft stranded copper delivers large current carrying capacity for high-power submersible pumps, with good bending flexibility to adapt to repeated lifting and lowering of pumps in deep wells. The independent grounding core guarantees leakage protection safety for underwater equipment.
- Waterproof Rubber Core Insulation:Special rubber insulation fully isolates conductors, blocks capillary water seepage, prevents short circuit and electric leakage under long-term soaking.
- Water-blocking Fillers & Wrapping Tape:Fills internal gaps tightly to stop water penetration from cable ends, maintains round cable shape and improves compressive resistance under water pressure.
- Integrated Rubber Outer Sheath:Thickened rubber outer layer resists well water, sewage, mud, sand friction and microbial corrosion, forms an all-round waterproof barrier for the inner cable core.
Key Advantages
- Full Immersion Waterproof Performance: Integrated sealed rubber structure avoids water ingress, suitable for years of continuous work in deep wells, ponds and sewage pools.
- High Current Load Design: 3×16mm² large-section power cores match high-power industrial submersible pumps, no overheating during long-time operation.
- Anti-Mold & Anti-Corrosion: Rubber compound contains anti-mold additives to resist algae and bacterial erosion in water, no hardening or cracking after long underwater use.
- Strong Abrasion Resistance: Thick outer sheath withstands friction with well wall rock and sand during pump lifting.
- Safe Grounding Configuration: Independent 10mm² ground wire ensures reliable equipment earthing to prevent underwater electric shock risks.
- Wide Temperature Adaptation: Stable operation range from -20℃ to +70℃, applicable to cold mountain well water and warm sewage environments.
What Are the Product Application Scenarios?
- Large-power deep well submersible water pump power supply
- Industrial sewage submersible pumps and underwater stirring motors
- Agricultural irrigation high-flow deep well pump wiring
- Municipal fountain, flood control and underwater drainage equipment
- Long-distance underwater power transmission for aquaculture equipment
Why Choose Shaanxi Jinshenghong Cable
Each batch undergoes full water immersion aging test to verify long-term waterproof sealing performance.
High-purity flexible copper and imported waterproof rubber raw materials, no recycled inferior filler.
Customizable core combinations and cross-sections to match different power submersible pump models.
Sufficient stock and global logistics support fast delivery for water pump engineering projects.
Professional technical team provides matching cable selection solutions for submersible pumps.
Thoughtful service - worry free after-sales service
Global logistics
Provide global express and sea freight services, door-to-door, worry free and convenient.
Explanation: Our professional engineering team provides selection and technical support to answer your questions and clarify any doubts.
Provide comprehensive quality assurance and after-sales policies to ensure worry free procurement for you.
FAQ
Q1: What does JHS stand for?
A: JHS refers to rubber insulated waterproof special cable for submersible pumps.
Q2: Can this cable be used in deep wells with long-term full water soaking?
A: Yes, the fully sealed rubber structure can operate stably under continuous deep water immersion for many years.
Q3: What is the function of the extra 1×10mm² core?
A: It is an independent grounding core, used to connect pump housing for leakage protection and underwater operation safety.
Q4: Is the outer sheath resistant to sand and rock friction in wells?
A: The thickened wear-resistant rubber sheath effectively reduces damage caused by friction with well wall sand and stone during pump lifting.
Q5: Can it be used for sewage and chemical wastewater pumps?
A: It can adapt to ordinary domestic sewage; customized anti-chemical corrosion version is recommended for strong acid/alkali wastewater.
Q6: What is the rated voltage of this cable?
A: Rated voltage 300/500V, matching medium and high power submersible pump equipment.
