Product Introduction
Product Introduction

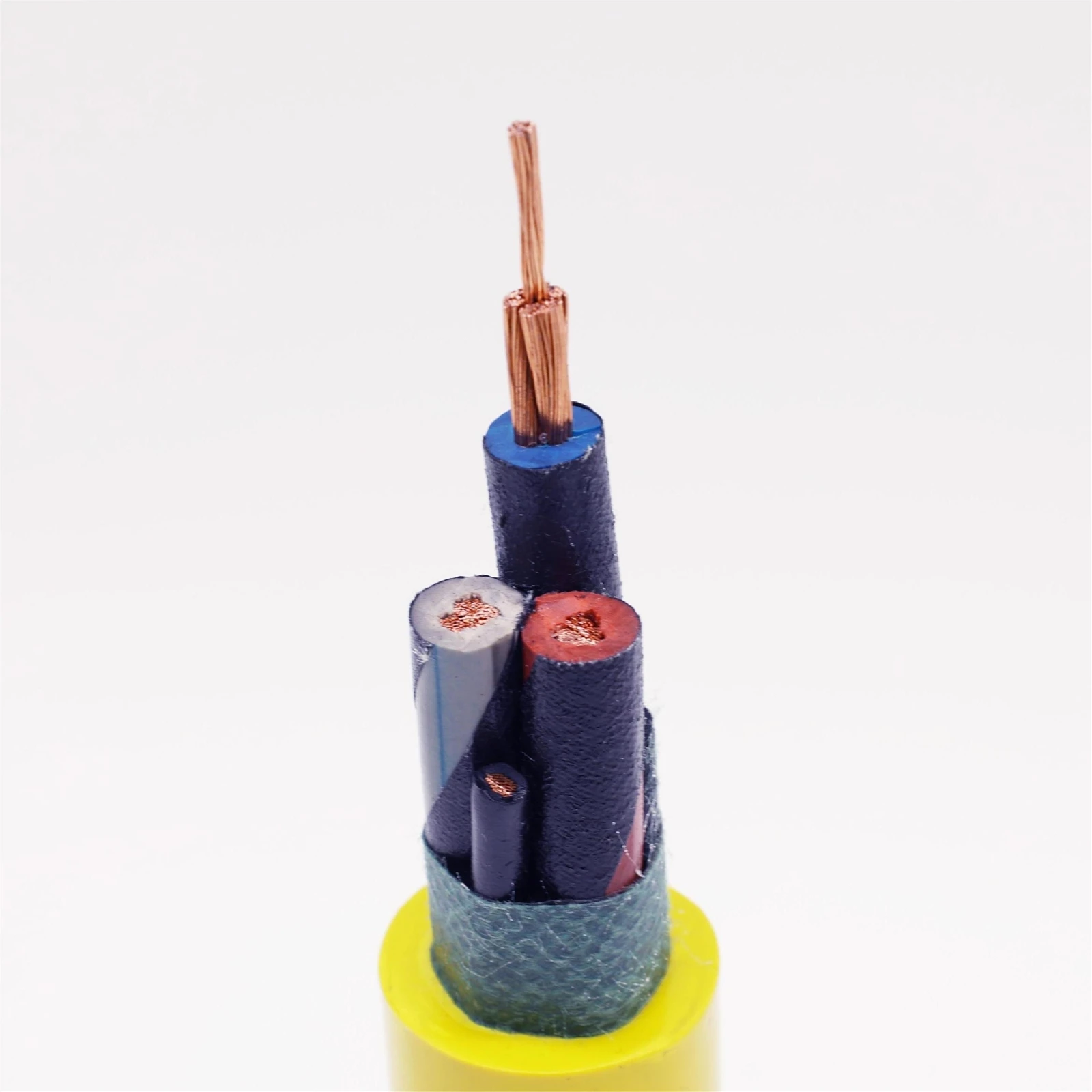

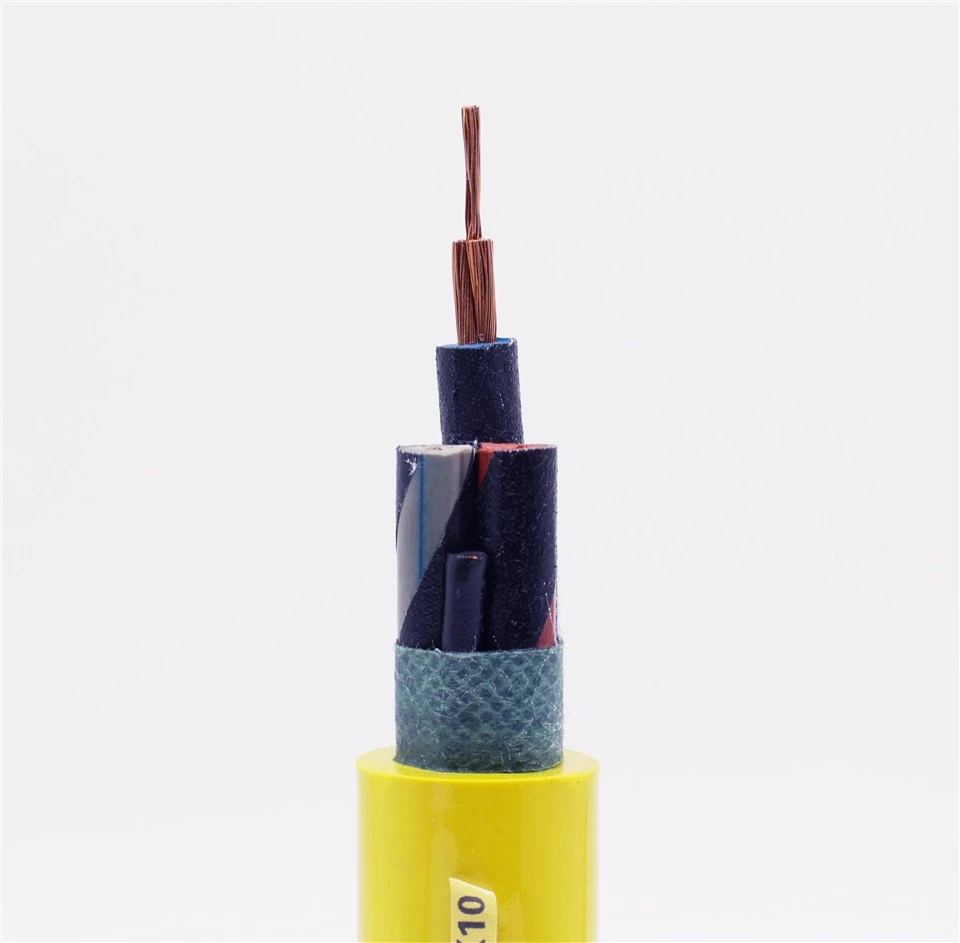

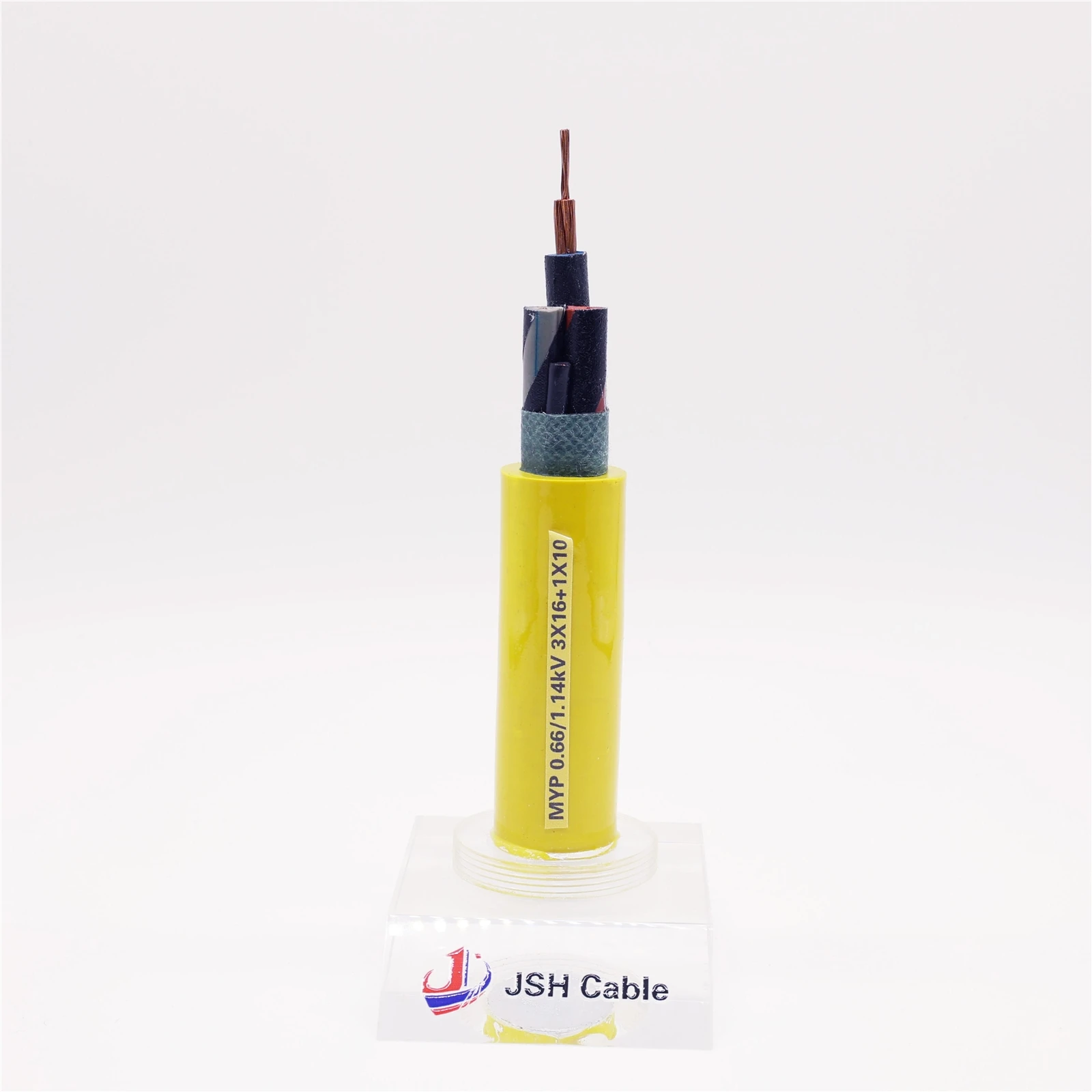

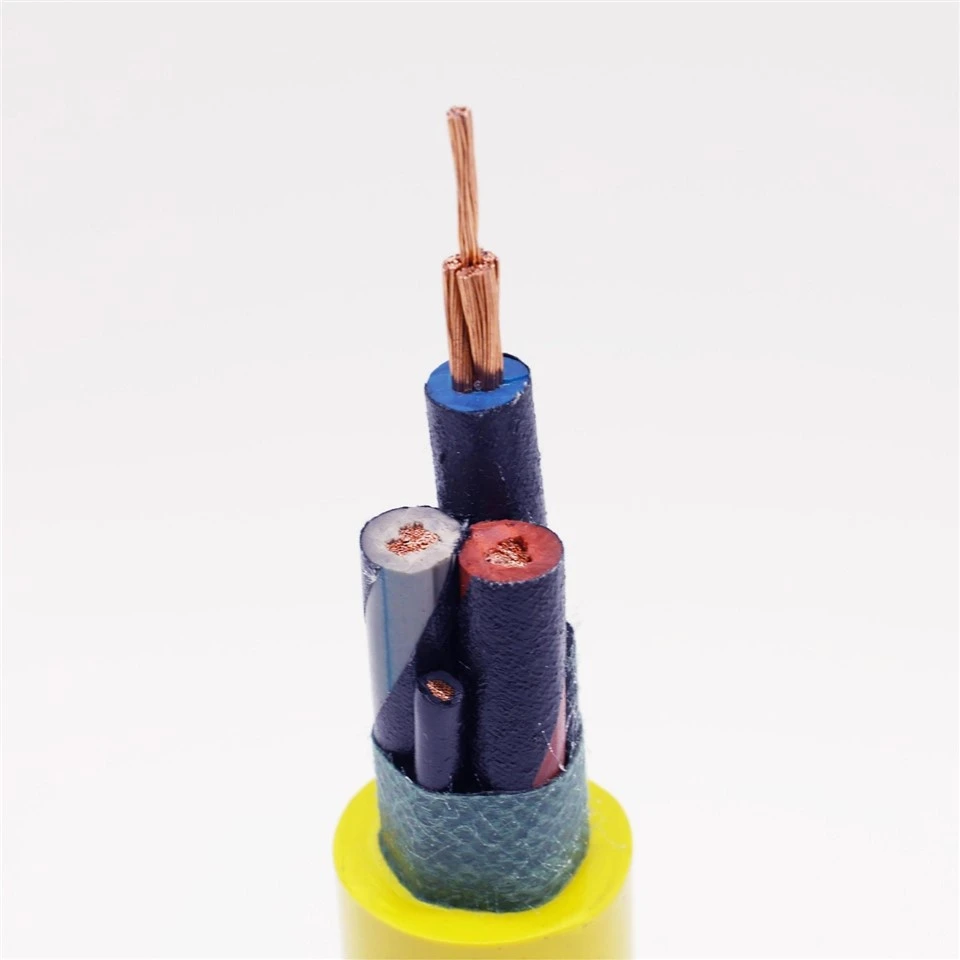

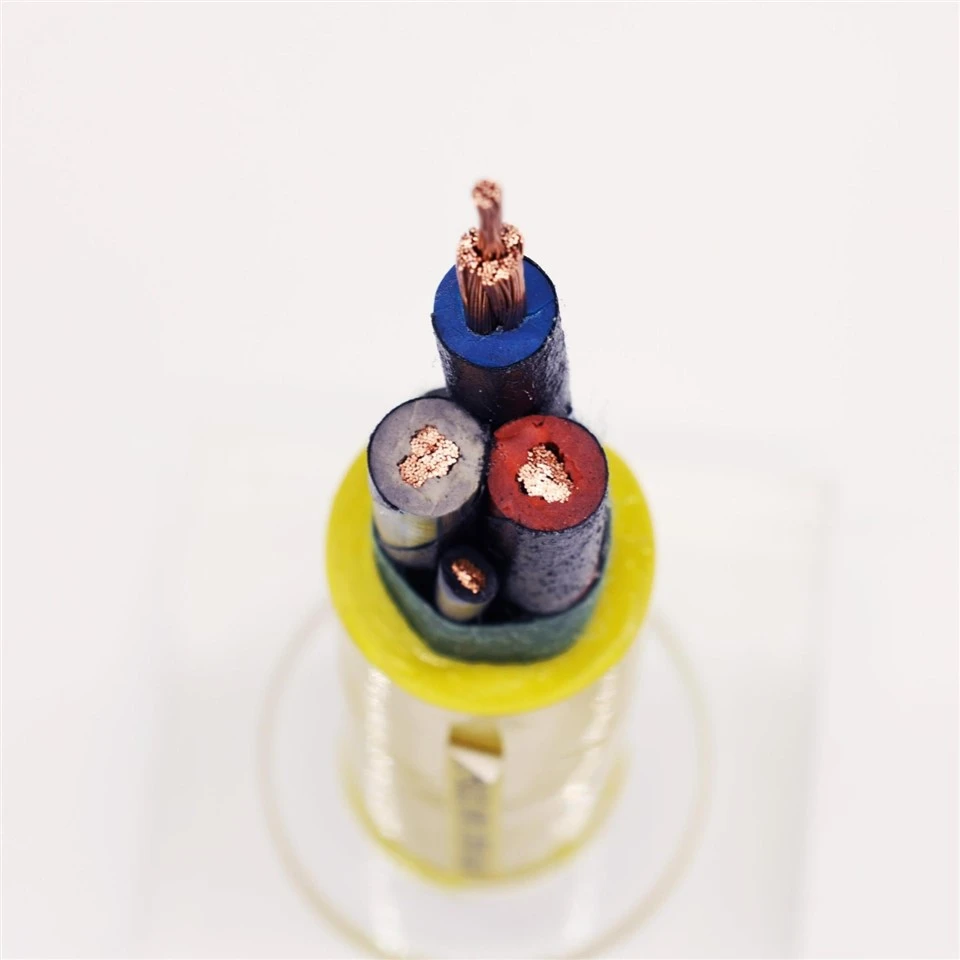

This multi-core mining shielded rubber flexible cable (MYP 3×16+1×10) is specially developed for underground coal mine mobile electrical equipment. Rated at 0.66/1.14kV, it adopts flexible copper conductors, flame-retardant rubber insulation, internal shielding and heavy-duty yellow rubber outer sheath. It features anti-explosion, anti-static, flame retardant and ultra wear-resistant performance to adapt to narrow, damp, dusty underground mining environments.
product key technologies
- Stranded flexible copper power cores (3×16mm²) + ground core (1×10mm²)
- Flame-retardant rubber insulation for each core
- Semi-conductive internal shielding layer
- Filler & wrapping tape
- Flame-retardant, anti-static yellow rubber outer sheath
- Flexible Stranded Copper Conductors:Multi-strand soft copper provides high conductivity and great flexibility for frequent dragging and bending of mining machinery underground. Separate ground core ensures reliable equipment earthing for explosion-proof safety.
- Flame-Retardant Rubber Insulation:Mine-specific flame retardant rubber blocks electric leakage, resists ignition and short-circuit high temperature to avoid underground fire hazards.
- Semi-conductive Shielding Layer:Conductive shielding limits electric field concentration, prevents partial discharge and meets mine explosion-proof safety standards.
- Special Rubber Outer Sheath:Yellow anti-static flame retardant rubber outer layer resists coal dust, rock abrasion, mine water, mud and chemical corrosion; anti-static performance eliminates static spark risks underground.
Key Advantages
- Mining Explosion-Proof Safety: Anti-static, flame retardant and shielded design complies with coal mine underground safety specifications, prevents spark and fire risks.
- Ultra High Flexibility: Soft rubber and multi-strand conductors support long-distance dragging and repeated bending of coal cutters, conveyors and transfer machines.
- Heavy Wear & Corrosion Resistance: Thickened rubber sheath withstands friction with rock, coal, mine water and weak acid underground.
- Wide Environmental Adaptability: Stable performance under damp, dusty, low-temperature underground working conditions.
- Integrated Earthing Design: Independent ground wire guarantees reliable equipment grounding to prevent electric leakage shock.
- Standard Certified: Passes coal mine safety certification, applicable for underground mining mobile electrical equipment.
What Are the Product Application Scenarios?
- Underground coal mining shearers, roadheaders and coal winning machines
- Mobile belt conveyors, transfer vehicles and underground mining auxiliary equipment
- Medium-voltage mobile power supply circuits in coal mine working faces
- Underground metal mine and tunnel excavation mobile machinery wiring
- Explosion-proof electrical equipment power connection under mines
Why Choose Shaanxi Jinshenghong Cable
- Full batch testing of flame retardancy, anti-static performance, shielding and abrasion resistance before delivery.
- Mine-grade flame retardant anti-static rubber raw materials, stable safety performance for underground hazardous environments.
- Complete range of core & cross-section combinations matching different mining equipment power ratings.
- Strict production following coal mine safety standards, qualified for mine bidding projects.
- Global logistics and professional technical support for mining power wiring schemes.
Thoughtful service - worry free after-sales service
Global logistics
Provide global express and sea freight services, door-to-door, worry free and convenient.
Explanation: Our professional engineering team provides selection and technical support to answer your questions and clarify any doubts.
Provide comprehensive quality assurance and after-sales policies to ensure worry free procurement for you.
FAQ
Q1: What does MYP stand for?
A: MY = mining mobile rubber cable; P = internal semi-conductive shielding type for explosion-proof use.
Q2: Why is the outer sheath bright yellow?
A: Yellow is the standard warning color for mine cables, easy to identify in dark underground roadways; the material is added with anti-static agent to eliminate static electricity.
Q3: Can this cable be dragged directly on rough underground rock ground?
A: Yes, thickened wear-resistant rubber sheath is designed for long-term dragging use in mining working faces.
Q4: What is the core safety feature for underground coal mine use?
A: The combination of flame retardant, anti-static and shielding structure avoids electric sparks that may trigger gas and coal dust explosion underground.
Q5: What is the rated voltage of MYP mining cable?
A: Standard rated voltage 0.66/1.14kV, matched for underground medium-voltage mining mobile equipment.
Q6: Is this cable allowed for use in gassy coal mines?
A: Yes, it meets national coal mine safety standards and can be used in underground working faces with methane gas hazards.
