Hey there! As a supplier of ESP power cables, I've seen my fair share of cable issues. One question that comes up a lot is, "How do I know if my ESP power cable is faulty?" Well, I'm here to break it down for you.
First off, let's talk about what an ESP power cable is. ESP stands for Electrical Submersible Pump, and these cables are used to power pumps that are submerged in water, like those in oil wells or water supply systems. They need to be tough and reliable because they operate in some pretty harsh conditions.
Visual Inspection
The easiest way to start checking if your ESP power cable is faulty is with a visual inspection. Look for any obvious signs of damage. This could include cuts, abrasions, or burns on the outer insulation. If you see any exposed wires, that's a major red flag. The outer insulation is there to protect the inner conductors from moisture and other environmental factors. Once it's damaged, the cable is at risk of short - circuiting or other electrical problems.
Also, check for any signs of swelling or bulging in the cable. This could indicate that there's a problem with the insulation breakdown inside. Over time, heat and electrical stress can cause the insulation to degrade, and swelling is one of the visible signs of this.
Electrical Testing
Visual inspection is a good start, but it won't always catch everything. Electrical testing is often necessary to get a more accurate picture of the cable's condition.
One common test is the insulation resistance test. You can use a megohmmeter for this. This device measures the resistance of the cable's insulation. A healthy cable should have a high insulation resistance. If the resistance is low, it could mean that the insulation is damaged, and there's a potential for current leakage.
Another important test is the continuity test. This checks if there's a continuous electrical path through the cable. You can use a multimeter for this. If the multimeter shows an open circuit or a very high resistance where there should be a low one, it means there's a break in the cable somewhere.
Performance Issues
Sometimes, the signs of a faulty ESP power cable aren't as obvious as physical damage or failed electrical tests. You might notice performance issues with the equipment that the cable is powering.
For example, if the pump that the cable is connected to is running less efficiently than usual, it could be due to a faulty cable. A cable with high resistance will cause a voltage drop, which means the pump isn't getting the full power it needs. This can result in reduced flow rates, lower pressure, or even the pump stalling.
You might also experience intermittent power outages or tripping of circuit breakers. These could be symptoms of a cable that's short - circuiting or having other electrical problems.
Environmental Factors
The environment in which the cable operates can also play a big role in its condition. If the cable is exposed to extreme temperatures, chemicals, or moisture, it's more likely to develop faults.
For instance, in an oil well, the cable is exposed to high - pressure oil and gas, as well as high temperatures. Over time, these conditions can degrade the cable's insulation. In a water supply system, constant exposure to water can cause corrosion of the conductors.
If you suspect that environmental factors are affecting your cable, it's important to take steps to protect it. This could include using protective coatings or enclosures.
Common Faulty Cable Scenarios
Let's look at some real - world scenarios where you might encounter a faulty ESP power cable.
Imagine you have a cable that's been in use for a long time in an industrial setting. One day, you notice that the equipment it's powering starts to malfunction. After a visual inspection, you find that the cable has some small cuts on the outer insulation. These cuts might have been caused by rough handling or rubbing against other objects over time. Even though the cuts seem small, they could be allowing moisture to seep in, which is causing the electrical problems.
Another scenario is a cable that's installed in an area with high humidity. Over time, the moisture in the air can penetrate the cable's insulation, leading to a gradual decrease in insulation resistance. This might not cause immediate problems, but eventually, it could lead to short - circuits or other serious issues.
Related Products
If you're in the market for new ESP power cables or related products, we offer a wide range of options. For example, we have YJV YJV22 YJV32 Low Voltage Copper. These cables are known for their high - quality copper conductors and reliable insulation, making them suitable for a variety of low - voltage applications.

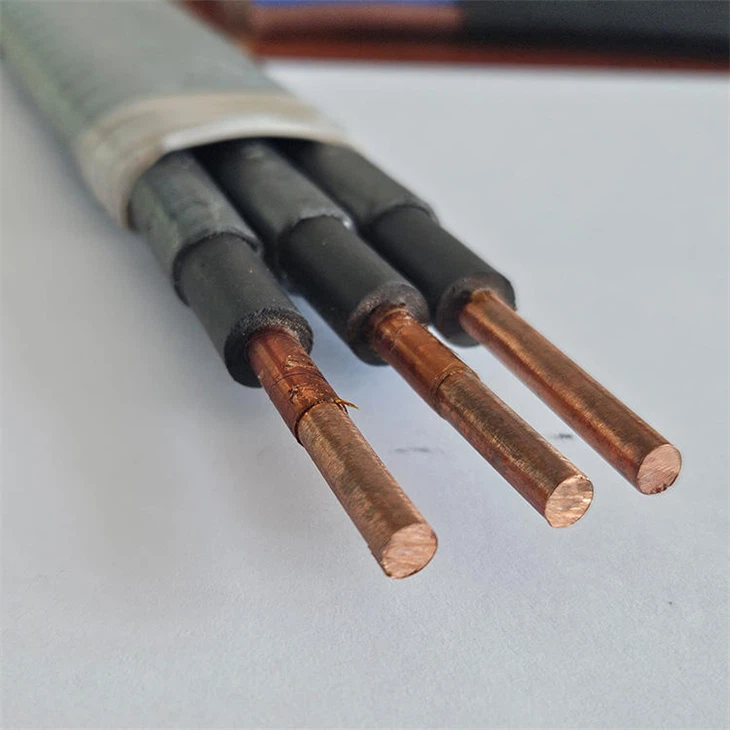

We also have EPDM Insulated Submersible Pump Cable. The EPDM insulation provides excellent resistance to water, heat, and chemicals, making it ideal for submersible pump applications.
And if you need a shielded cable, our RVVP Shielded Cable is a great choice. It offers protection against electromagnetic interference, which is important in many electrical systems.
Conclusion
Figuring out if your ESP power cable is faulty isn't always straightforward. It requires a combination of visual inspection, electrical testing, and paying attention to performance issues. By being vigilant and regularly checking your cables, you can catch problems early and avoid costly downtime.
If you're having trouble with your ESP power cables or are looking for high - quality replacement cables, don't hesitate to reach out. We're here to help you find the right solutions for your power - cable needs. Whether you need a simple repair or a complete cable replacement, we've got you covered. Contact us to start a discussion about your requirements and let's work together to keep your equipment running smoothly.
