Product Introduction
Product Description
This is JSH Cable's YJV62 26/35kV 1×300mm² single-core high-voltage power cable, featuring copper conductor, XLPE insulation, non-magnetic steel tape armoring and PVC sheathing, designed for reliable 35kV power transmission in grids, substations and renewable energy projects with direct burial installation.
Application scenarios
- Power transmission in 35kV urban and regional power grids
- 35kV incoming/outgoing lines for substations and switchgear stations
- High-voltage power supply for large industrial plants, heavy industry projects
- Power supply for large data centers, supercomputing centers
- 35kV collector lines for solar and wind power plants, energy storage stations
- Direct burial, duct, cable tray and cable trench installation
product key technologies

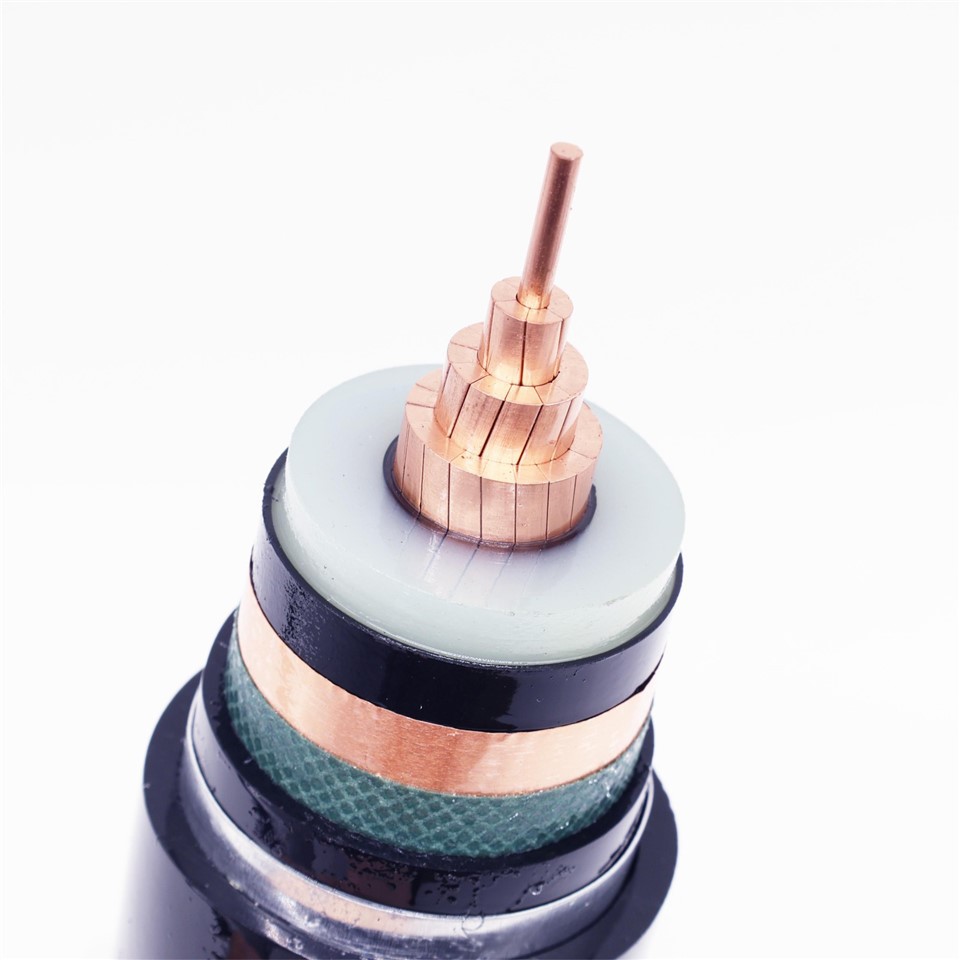

Cable structure
- Copper Conductor (Center Core)
Material: Oxygen-free copper
Structure: Layered compacted round conductor
- Conductor Screen Layer
Material: XLPE-based semi-conductive material
- XLPE Insulation Layer
Material: Cross-linked polyethylene (XLPE)
- Insulation Screen Layer
Material: XLPE-based semi-conductive material
- Copper Tape Shield Layer
Material: Oxygen-free copper
Structure: Copper tape lapping / Copper wire braiding
- Buffer Layer
Material: Semi-conductive water-blocking buffer tape
- PVC Inner Sheath
Material: Polyvinyl chloride (PVC)
- Non-magnetic Steel Tape Armor
Material: Non-magnetic stainless steel tape / Aluminum alloy tape
- PVC Outer Sheath
Material: Flame-retardant polyvinyl chloride (PVC)
Advantages of Structural Materials
- Copper Conductor (Center Core)Material & Structure: Oxygen-free copper, layered compacted round conductor.Function: Core carrier for power transmission with high conductivity and low loss.
- Conductor Screen LayerMaterial & Structure: XLPE-based semi-conductive material.Function: Uniform electric field on conductor surface and avoid tip discharge.
- XLPE Insulation LayerMaterial & Structure: Cross-linked polyethylene (XLPE).Function: Withstand 26/35kV operating voltage with excellent insulation, heat resistance and mechanical strength.
- Insulation Screen LayerMaterial & Structure: XLPE-based semi-conductive material.Function: Uniform outer electric field of insulation and prevent partial discharge.
- Copper Tape Shield LayerMaterial & Structure: Oxygen-free copper tape lapping / copper wire braiding.Function: Grounding protection, discharge fault current and shield electromagnetic interference.
- Buffer LayerMaterial & Structure: Semi-conductive water-blocking buffer tape.Function: Buffer mechanical stress and block moisture from entering insulation.
- PVC Inner SheathMaterial & Structure: Polyvinyl chloride (PVC).Function: Protect internal structure and isolate armor from insulation.
- Non-magnetic Steel Tape ArmorMaterial & Structure: Non-magnetic stainless steel tape / aluminum alloy tape.Function: Resist tension, compression and rodent damage; avoid eddy current loss.
- PVC Outer SheathMaterial & Structure: Flame-retardant polyvinyl chloride (PVC).Function: Resist corrosion, UV, moisture and flame for harsh outdoor / underground environments.
Core Advantages
- High-Quality Material: Oxygen-free copper conductor + XLPE insulation, combined with high-quality shielding, sheath and armor materials, laying a solid foundation for safety and durability.
- Scientific Structure: Layered compacted conductor + multi-layer shielding + armor buffer design, ensuring uniform electric field without discharge risk and reliable mechanical protection.
- Excellent Performance: Energy-efficient, stable insulation, corrosion-resistant, moisture-proof, tensile and compression-resistant, long service life, meeting strict standards for medium and high-voltage transmission.
- High Cost-Effectiveness: Focusing on the core needs of medium and high-voltage transmission, it has the advantages of high efficiency, safety, wide adaptability and durability, with prominent differentiation.
- Customizable: Conductor specifications, sheath materials, length and other parameters can be customized according to customers' specific needs, adapting to different laying scenarios and transmission requirements.
why choose us
Lorem ipsum dolor sit amet consectetur adipisicing elit.
Thoughtful service - worry free after-sales service
global logistics
Provide global express and sea freight services, door-to-door, worry free and convenient.
Explanation: Our professional engineering team provides selection and technical support to answer your questions and clarify any doubts.
Provide comprehensive quality assurance and after-sales policies to ensure worry free procurement for you.
FAQ
Q: What conductor and insulation materials are used in this cable?
A: Our cable adopts oxygen-free copper conductor and XLPE insulation, matched with high-grade shielding, sheath and armor materials, ensuring excellent safety and long service life.
Q: What structural advantages does this medium voltage cable have?
A: It adopts layered compacted conductor and multi-layer shielding with armor buffer structure, which ensures uniform electric field, avoids discharge risks and provides strong mechanical protection.
Q: What are the main performance features of this cable?
A:This cable features low power loss, stable insulation, corrosion resistance, moisture resistance, high tensile and compression resistance, and long service life, fully meeting medium and high-voltage transmission requirements.
Q: What voltage level is this cable suitable for?
A:This product is designed for 26/35kV medium voltage power transmission, and can be used in various harsh laying environments such as outdoor, direct burial and pipe laying.
Q: Do you provide customized services for this cable?
A:Yes, we support customization including conductor specifications, sheath type, length, structure and other parameters to meet different project and laying demands.
Q: Why choose this cable over other standard power cables?
A: It combines premium materials, optimized structure and reliable performance with high cost-effectiveness. It features strong adaptability, high safety and obvious advantages for industrial and medium-voltage power projects.
