Products Description
JSH Cable has launched a highly reliable DC solar cable for the photovoltaic industry -PV1-F 1*4mm² DC Solar Cable - TUV Certified, UV & Weather Resistant for Rooftop Solar Panel Connections. Specially designed for photovoltaic power generation systems, this cable has undergone rigorous TUV type tests and certification, fully meeting international standards. It ensures safe, durable, and low-loss connections between solar modules, high-efficiency inverters, and combiner boxes.
As a professional manufacturer in the photovoltaic cable industry, JSH Cable is committed to providing high-performance new-energy wiring solutions through strict quality control and continuous innovation. This TUV-certified H1Z2Z2-K cable is the result of our years of technical expertise and industry experience.
Products Features
Robust & Durable Construction: Flexible Class 5 tinned copper conductor ensures excellent electrical conductivity and corrosion resistance, while dual-layer LSZH insulation and outer sheath provide superior protection against UV radiation, ozone, moisture, chemical corrosion, and extreme temperatures-ideal for harsh outdoor environments.
•
Enhanced Safety Performance: LSZH material minimizes toxic gas and smoke emission during combustion, protecting human health and equipment. Flame-retardant design prevents flame propagation (EN 60332-1-2), while high test voltage resistance ensures electrical safety in critical PV systems.
•
Flexible & Easy Installation: Finely stranded conductor and small bending radius (5×cable diameter) allow for easy installation in tight spaces, cable trays, conduits, and on rooftops. Easy stripping design saves installation time, and compatibility with all major solar connectors adds versatility.
•
Long Service Life: Engineered to last 25-30 years, matching the service life of most PV systems. Resistant to ageing, weathering, and chemical exposure, ensuring long-term stable power transmission without frequent replacement.
Products parameter
|
H1z2z2-k photovoltaic DC cable-1 core |
|||||
|
Specification |
Model:PV1-F Conductor:Class 5 tinned copper conductor
No. of Cores:1 Conductor Type:stranded Insulation:125℃ cross-linkedpolyolefin Jacket(Sheath):125℃ cross-linked polyolefin Standards:2PfG 1169/08.2007 DC:1.8kV AC:0.6/1kV Nominal cross-sectional area of conductor(mm²):1.5~35(mm²) Application:Photovoltaic power generation system Colors:Red Black or custom Ambient temperature:-40℃~+90℃ Max. Temperature at conductor:+120 ℃ |
||||
|
H1z2z2-k photovoltaic DC cable-1 core
|
|||||
|
Cross sectional area mm2
|
Conductor structure (n/mm) |
Calculated conductor overall diameter(mm) |
Calculated cable overall diameter (mm) |
Calculated cable weight(kg/km) |
Max.DC resistance at 20℃ |
|
1.5
|
30/0.25
|
1.6
|
5.1
|
41
|
13.7
|
|
2.5
|
49/0.25
|
2.02
|
5.5
|
53
|
8.21
|
|
4
|
56/0.30
|
2.6
|
6.2
|
73
|
5.09
|
|
6
|
84/0.30
|
3.42
|
6.8
|
96
|
3.39
|
|
10
|
84/0.40
|
4.56
|
7.9
|
149
|
1.95
|
|
16
|
128/0.40
|
5.6
|
9.2
|
208
|
1.24
|
|
25
|
192/0.40
|
6.95
|
11.2
|
310
|
0.795
|
|
35
|
276/0.40
|
8.74
|
12.2
|
411
|
0.565
|
|
H1z2z2-k photovoltaic DC cable-2 core
|
|||||
|
Conductor cross-section (mm²) |
Conductor structure (n/mm) |
Stranded outer diameter(mm) |
Insul. |
Conductor resistance (Ω/km) |
Ampacity60°c(A) |
|
2*1.2
|
30/0.25 |
0.7
|
5.00*10.30 |
13.7
|
30
|
|
2*2.5
|
49/0.25 |
0.7
|
5.20*10.80 |
8.21
|
41
|
|
2*4.0
|
56/0.285 |
0.7
|
5.50*11.20 |
5.09
|
55
|
|
2*6.0
|
84/0.285 |
0.7
|
6.20*12.60 |
3.39
|
70
|
|
2*10.0
|
84/0.40 |
0.7
|
7.5*15.20 |
1.95
|
98
|
|
2*16.0
|
128/0.40 |
0.7
|
9.60*19.70 |
1.24
|
1
|

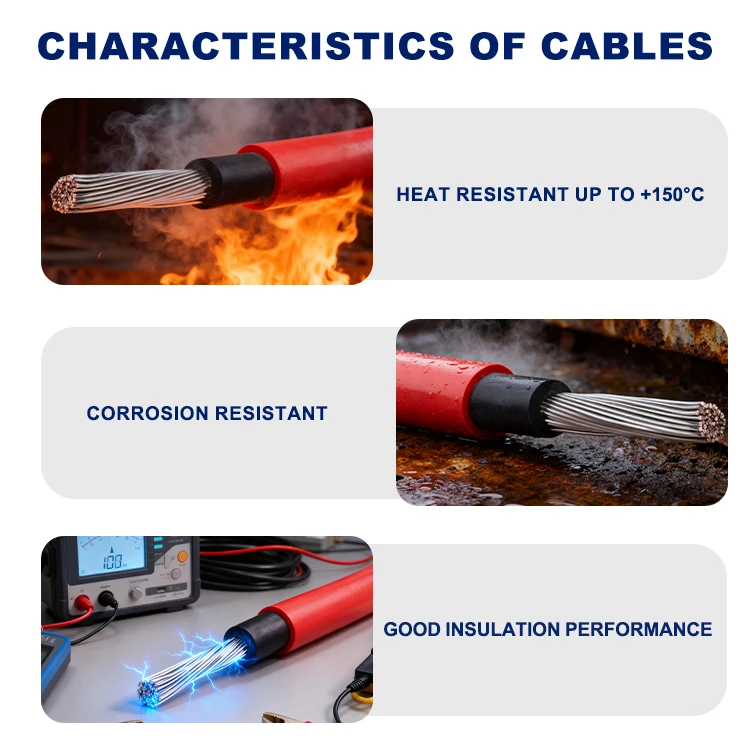

Products Characteristic
Specifications
Electrical Properties
» Rated Voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC
» Maximum Permitted DC Voltage: 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load)
» Insulation Resistance: 1000 MΩ-km
» Spark Test: 6000 Vac (8400 Vdc)
» Voltage Withstand: 6500 Vac for 5 min
Chemical Properties
» Ozone Resistance: According to EN 50396 part 8.1.3 Method B
» Weathering- UV Resistance: According to HD 605/A1
» Ammoniac resistant
» Very good resistance to oils and chemicals
» High wear and robust, abrasion resistant
» Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)
Thermal Properties
» Maximum Voltage: Ambient Temperature: -40℃ ~ +90℃
» Maximum Temperature At Conductor: 120℃ (20000h) according to IEC/EN 60216-1
» Short Circuit Temperature: 200℃/5 sec
» Thermal Endurance Test: According to EN 60216-2 (temperature index +120° C)
» High Temperature Pressure Test: According to EN 60811-3-1
» Damp-Heat Resistance: According to EN 60068-2-78 with 85% humidity
Mechanical Properties
» Minimum Bending Radius: 4×OD (fixed), 5×OD (flexing)
» Dynamic Penetration: According to 2 PfG 1169/08.2007 Annex F
» Notch Propagation: According to 2 PfG 1169/08.2007 Annex G
» Tensile Strength And Elongation Of Insulation And Jacket: According to EN 60811
» Anticipated Period Of Use: 25 years
Fire Performance
» Flame retardant according to EN 50265-2-1, IEC 60332-1, VDE 0482-332-1-2, DIN EN 60332-1-2
» Low smoke emission according to IEC 61034, EN 50268
» Halogen free according to EN 50267-2-1, IEC 60754
Our factory
1.20 years production experience.
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
